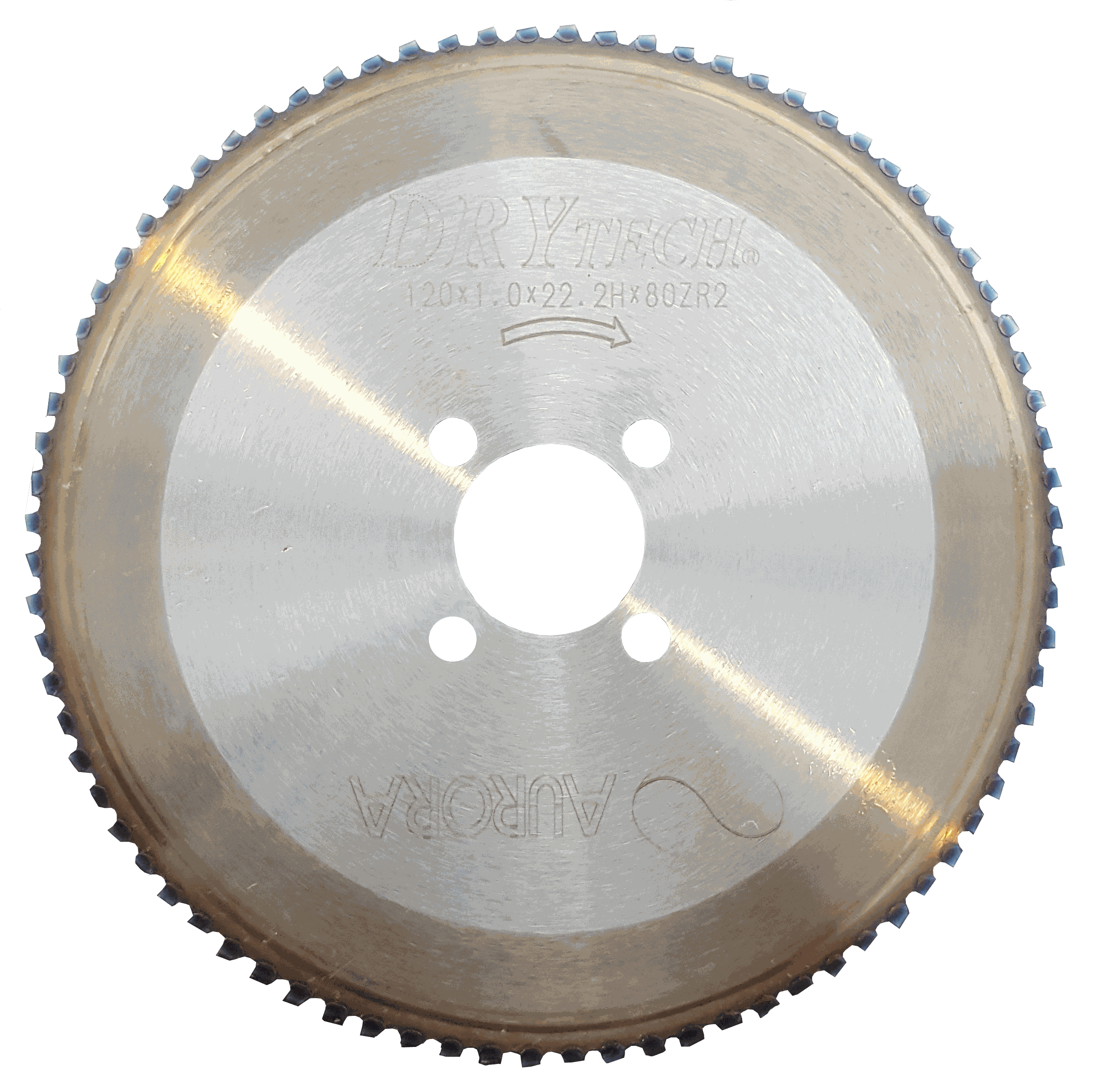

DRYTECH - AURORA TCT Saw blades for carbon composites
Applicable on :
Robots, Milling Centres, 5-Axe CNC Machining Centres or common Aluminium and Wood Working Machines
Suitable for:
· CFRP, CFRTP, Aramid Fibre Reinforced Plastics, GF, Prepreg
· Pipes, profiles, plates
Advantages :
· Clean cutting edge
· Prevent delamination due to finest pitch
· Less chip volume
· Material saving through thin-cut technology
· Less heat processing due to lower cutting resistance
Customized pin holes & bore on request!
|
Ø [mm]
|
Kerf [mm]
|
Body[mm] |
Bore[mm] |
Teeth
|
| 70 |
1 |
0.94 |
22.2 |
60 |
| 115 |
1 |
0.94 |
22.2 | 100 |
| 150 |
1 |
0.94 |
25.4 |
80,100,120 |
| 192 |
1 |
0.94 |
20 |
160 |
| 200 |
1.2 |
0.94 |
30 |
180 |
| 255 |
1.4 |
1.2 |
30 |
220 |
| 305 |
1.6 |
1.4 |
30 |
260 |
| 355 |
2.0 |
1.7 |
25.4 |
300 |
| 405 |
2.5 |
2.25 |
30 |
280 |
* for material wall thickness < 10 mm Discover the full range in our shop.
| Ø [mm] | Kerf [mm] | Body[mm] | Bore[mm] | Teeth |
|
250 |
4.0 |
3.0 |
30 |
80 |
|
305 |
4.0 |
3.0 |
30 |
100 |
|
355 |
4.0 |
3.0 |
30 |
120 |
* for material wall thickness > 10 mm
Recommended cutting parameters
| Cutting speed |
3000 [m/min ] |
| Feed speed |
4000-15000 [mm/min] |
