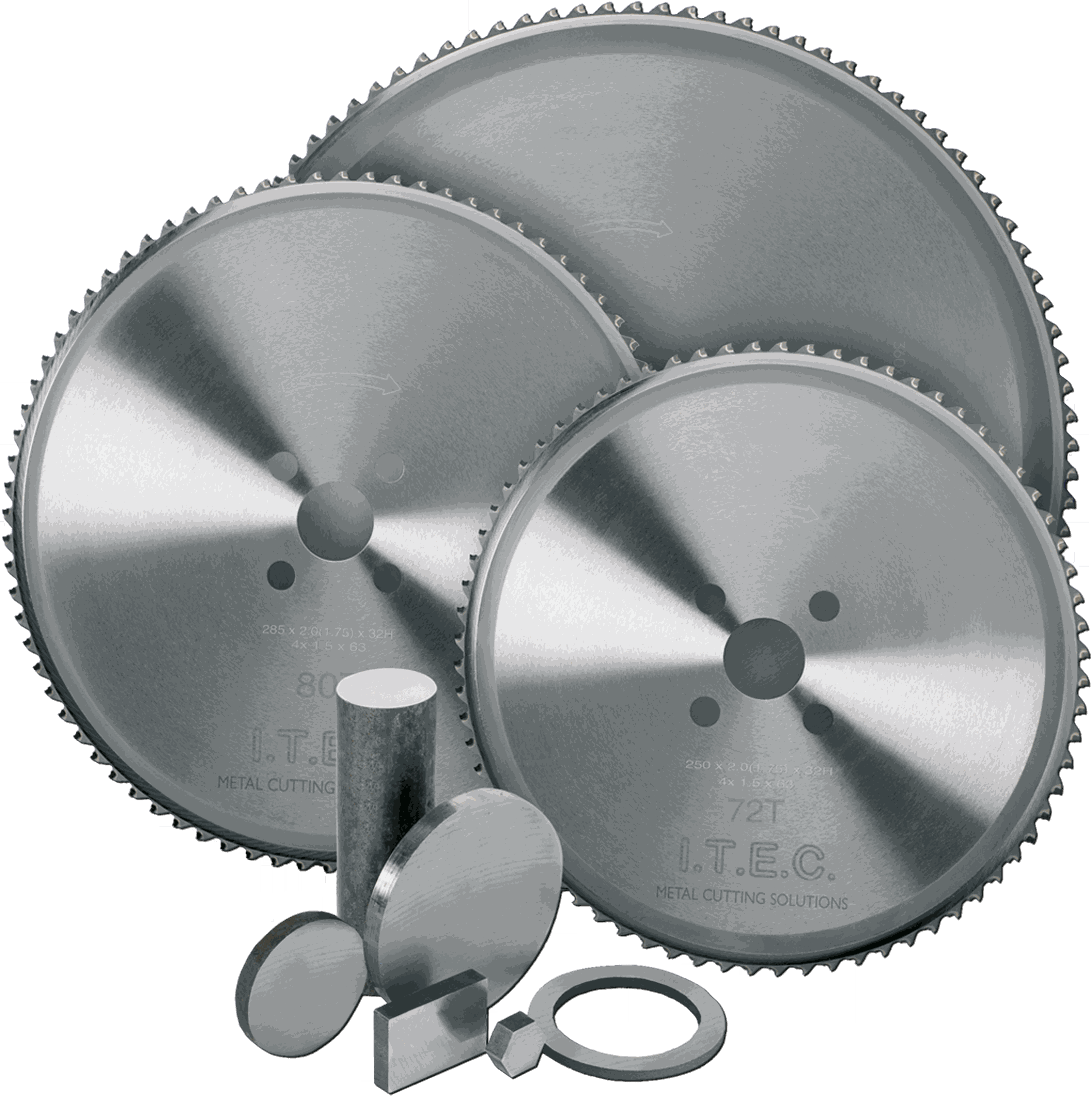

Throw - Away TCT Saw blades
Throw-away type of TCT Saw blade used for masscutting of solid bars and pipes.
Special design of hook and clearance angle for precise and cost effectiveness cutting of automobile parts and forged materials.
Application: mild steel, alloy steel, stainless steel, cast iron, non - ferrous steel
Technical data sheet - Machine Table
All saw blades are available in blank and coated version !
|
Ø [mm]
|
Kerf/Body [mm]
|
Bore [mm]
|
Teeth
|
Tip material
|
|
250
|
2.0/1.7
|
32
|
54/60/72
|
cermet/carbide
|
|
285
|
2.0/1.7
|
32
|
60/72/80/120
|
cermet/carbide |
|
350
|
2.7./2.25
|
40
|
120/140
|
cermet/carbide |
|
360
|
2.6/2.25
|
40
|
60/80/100
|
cermet/carbide |
|
425
|
2.7/.2.25
|
50
|
60/80/100/120
|
cermet/carbide |
|
460
|
2.7/2.25
|
50
|
60/80/100
|
cermet/carbide |

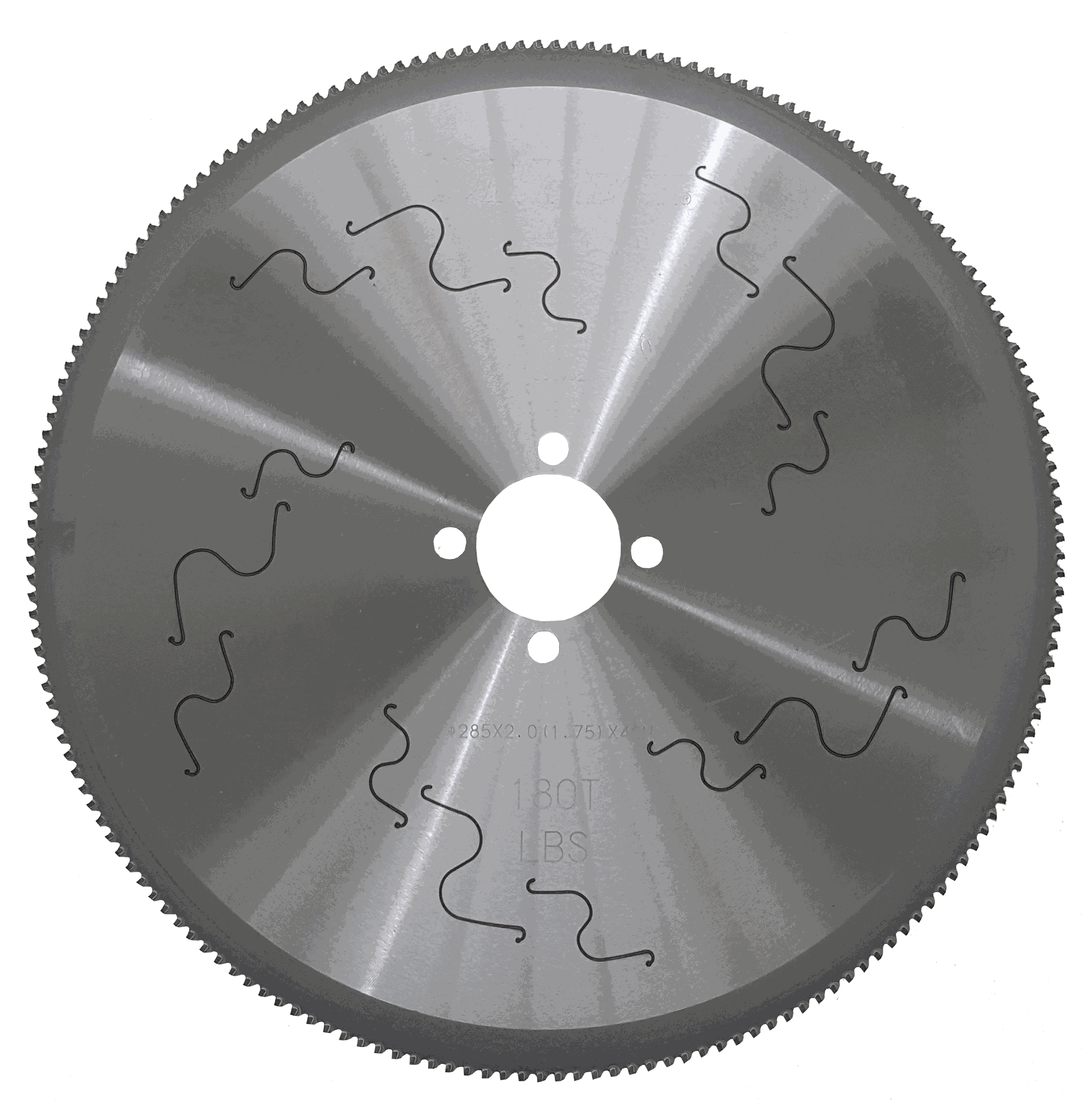

High Tensile Tube Cutting TCT Throw Away Saw Blades - Special Edition
|
Ø [mm]
|
Kerf/Body [mm]
|
Bore [mm]
|
Teeth
|
|
250
|
2.0/1.7
|
32
|
160
|
|
285
|
2.0/1.7
|
32
|
160/180/200
|
Advantages
Higher cutting speed - Higher Durability - excellent cutting surface
for material wall thickness 1.2- 3.5 [mm]
Example material 50 x 30 x 16 mm > 1000 [N/mm²]
Comparison TH 285 mm
|
Saw blade
|
TH Standard
|
TH High Tensile
|
Performance
|
|
Teeth
|
120
|
180
|
+80 teeth
|
|
Speed [rpm]
|
200
|
200
|
|
|
Feed [mm/tooth]
|
0.04
|
0.04
|
|
|
Feed speed [mm/min]
|
960
|
1600
|
67 % faster
|
|
Cutting time [s]
|
3.1
|
1.9
|
- 37 % shorter
|
